SOLAR PV PROJECTS

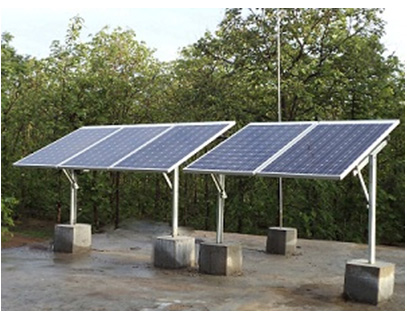

Solar PV solutions are ideal for powering remote locations and where there is limited or no grid access. The power plant is comprised of solar PV panels, a battery bank and a power conditioning unit. The solar modules convert sunlight into energy and supply the dedicated load through a power conditioning unit. This unit in turn converts DC to pure 230V/415V AC sine wave. Whenever there is an overflow of energy, it is used to charge the battery bank.


The PCU is bidirectional and has a grid import/export function. During night time or times of low solar energy availability, the battery will support the dedicated loads. If solar energy is unavailable and the battery is low, the PCU will work as a charger to charge the battery directly from grid power, feeding the loads simultaneously. The unit is capable of operating in standalone mode with no break in power flow in the event of sunshine unavailability for the number of days as per design.

Features:

  • 24/7 power reliability

  • Allows monitoring and management via GSM / GPRS / Internet connection.

  • Features intelligent logic for optimum control of battery self-consumption, feed-in and storage of solar energy.

  • Secure supply in case of grid power outage.

  • Short – term payback period, thanks to energy – saving capability and low Maintenance



Applications:

  • Banks & ATM’s | Petrol pump stations | Hospitals and hotels

  • Government buildings and educational institutions



System

24V
500Wp

24V
1.0KWP

24V
750VA

24V
1.0KWp

48V
1.5KWp

48V
2.0KWp

96V
5.0KWp

120V
10KWp

240V
50KWp

240V
100KWp

Solar PV Modules

High efficient Modules with IEC and UL certification

Module Mounting Structure

Galvanized steel structures with optimum tilt angle for the given site

Array Junction Box

IP65 Dust, water and Vermin proof. Reverse blocking diode in each string and MOV at output for Lightning and surge protection.

Battery

Tubular Lead Acid / VRLA GEL Type

DCDB

Suitable rating of MCB / MCCB shall be provided as required

ACDB

Multiple feeders through MCB's and energy meter to measure the electrical components of the loads and automatic load limit switch

Plant Monitoring (Optional)

Monitoring and management via GSM/GPRS/Internet connection and data analysis

Cables

Copper conductor with UV resistant for outdoor cables

Earthing Protection

All the array structure and equipment in the system shall be grounded using super earthing kit in order to get very low resistance path

Lightning Protection

Adequate lightning protection shall be provided

Operating Temperature

,- 10°C to + 55°C

Humidity

Up to 90% RH

Installation Materials

Shall be high quality and sufficient to complete the installation at site

Note

1. The above mentioned models are standard systems; other ratings are available on request
2. The above system configuration is designed considering annual average sunshine per day of 5.0kWh/m2 / day. It may vary
     depending on  locations and as the temperature varies the system.
3. The Battery Bank is designed for C10 Capacity based on actual
4. Backup time and autonomy may change based on actual based on OEM guarantee / Warrantee
