SOLAR LANTERN



Sunmatrix Solar supplies cost effective, reliable wide range of solar lanterns which includes CFL and LED lamps. The Solar Lantern system is stand alone portable type, consisting of a Lantern with Battery, Electronics, and SPV panel. The Lantern housing   is made of ABS Plastic for rugged & outdoor use with a base for mounting maintenance free battery, lamp, electronics and holder. The high transmissivity acrylic cover is used to give maximum light output covering a full range of 360° lighting. Electronics circuit is designed with highly efficient two-step charge controller and high frequency inverter / high efficient linear LED driver. The function of the charge controller is to protect the battery from overcharging by controlling the charging of the battery through the SPV supply and protect the battery from deep discharging by monitoring the load. High frequency inverter / high efficient linear LED driver offers high efficacy, more light output and long service life to the Light.



Solar panel charges the battery during the day time, and stored energy can be used during night. Solar lantern is an excellent solution for household electrification and variety of applications in rural/urban.

Features

  • Bright clean light with Omni-directional distribution
  • Strong and attractive body made of ABS plastic
  • Adequate protections and indications
  • Industrial-grade PV technology | Roof mountable solar Panel | Cloudy day autonomy
  • Charging via Solar Module | Optional AC Mains Charger | Optional Mobile Charging
  • Safe | Reliable | Compact | Portable | Easy Handling | Easy installation
  • Maintenance free | Long life
  • No noise | No dim | No smoke | No pollution | No fuel cost
  • Pure green power | Zero operating cost | Easy to maintain

Applications

  • Light Source in remote un-electrified villages
  • Emergency Light Source in urban
  • Homes | Institutes | Temples | Clinics | Offices | Stores
  • Formers for Agriculture extension | Students for study at night
  • Adult education | Small business hrs extension
  • Security | Police stations | Railway | Military outposts
  • Festivals | Picnic | Farm House

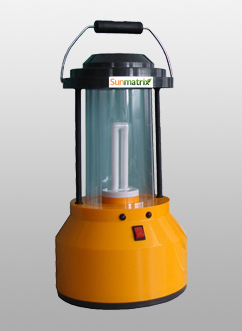

SOLAR LANTER 12V / 7W - CFL


TECHNICAL DATA - SOLAR LANTERN

Rating

Lamp Wattage in Watts

3W

7W

Rated Voltage

6V

12V

Solar PV Module

Maximum power Pmpp [Wp]

3

10

Rated Voltage Vmpp [V]

8.5

16.6

Open circuit Voltage Voc [V]

10.5

20.8

Rated Current Impp [A]

0.35

0.6

Short circuit Current Isc [A]

0.38

0.65

Tolerance

electrical characteristics are within ± 10% of the indicated values

Solar Charge Controller

Type of Charge Controller

Inbuilt PWM charge Controller

Indications

LED indication for Charging and Battery low

Temperature compensation

Built-in temperature compensation for proper battery charging

Control

Battery Low  & High Disconnect | Battery Low & High Reconnect

Protection

No load protection | Short circuit protection | Battery reverse polarity | Reverse flow protection

Battery

Battery Capacity

6V / 4.5AH @ C/20

12V / 7AH @ C/20

Type of Battery

SMF [Sealed Maintenance free] Lead Acid Battery

DOD

80% of rated capacity

Light Output

Light Output Device

LED (Light Emitting Diode)

4 pin CFL (Compact Fluorescent Lamp)

Make / Brand of Light

NICHIA/OSRAM/PHILIPS/CREE

OSRAM

Rated Light Output (Lumens)

240 ± 5%

370 ± 5%

Efficiency

> 85%

Lamp Life

50000 h

8000 h

Duty Cycle

4 hrs a day under average daily of 5.5 kWh / sq.m on a horizontal surface

Storage Autonomy

3 Days

Cable for connecting Module and Lantern

Type of Cable

Cable Cu MST twin 1mm2 PVC

Length of Cable

5 meter

General

Charging with AC

Optional

Sunmatrix India ¦ Technical modification subject to change without notice

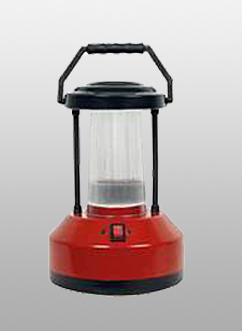

SOLAR LANTER 6V / 3W - LED
