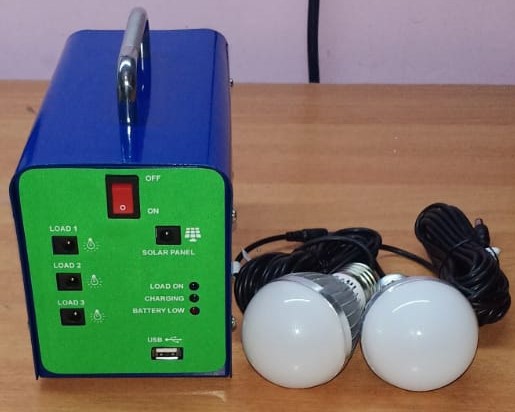

SOLAR HOME LIGHTING SYSTEMS

Sunmatrix Solar Home Lighting Systems are small compact solar renewable energy solutions to generate independent energy for power home appliances such as CFL/LED lights, fans and entertainment equipments. These systems come with standardized solar components such as PV module, Solar Charge Controller, Battery and Lights with high reliability, minimum maintenance and maximum service life. These Systems are best suitable in remote locations where electricity is not available and unreliable. Sunmatrix Solar offers different and customised models to meet the individual customer requirements.

Features:

Bright clean light with high reliability.
Industrial-grade PV technology
Roof mountable solar Panel | Cloudy day autonomy
Safe | Reliable | Compact | Portable | Easy Handling
Easy installation | Maintenance free | Long life
No noise | No dim | No smoke | No pollution | No fuel cost
Pure green power | Zero operating cost | Easy to maintain

Applications:

Light Source in remote un-electrified villages
Emergency Light Source in urban
Homes | Institutes | Temples | Clinics | Offices | Stores
Small businesses

TECHNICAL DATA - SOLAR HOME LIGHT SYSTEMS
RATING
System Capacity in Watts	8Wp	12Wp	18Wp	40Wp	75Wp	75Wp
System Voltage	12V
Model No.	LED MODEL I	LED MODEL II	CFL MODEL I	CFL MODEL II	CFL MODEL III	CFL MODEL IV
SPV MODULE
Maximum power Pmpp [Wp]	10Wp	12Wp	20Wp	40Wp	75Wp	75Wp
Nominal Voltage [V]	12V
Rated Voltage Vmpp [V]	16.4V
Open circuit Voltage Voc [V]	21V
Rated Current Impp [A]	0.60A	0.72A	1.20A	2.41A	4.52A
Short circuit Current Isc [A]	0.66A	0.79A	1.31A	2.63A	4.92A
SOLAR CHARGE CONTROLLER
Voltage Rating	12V
Current Rating	6A				10A
Type of Charge Controller	Inbuilt PWM charge Controller
Indications	LED indication for Charging and Battery low
Temperature compensation	Built-in temperature compensation for proper battery charging
Protection	No load protection \| Short circuit protection \| Battery reverse polarity \| Reverse flow protection
Control	Battery Low Disconnect \| Battery Low Reconnect \| Battery High Charge Disconnect \| Battery High Charge Reconnect
BATTERY
Battery Capacity	12V / 7AH @ C/20	12V / 20AH @ C/10	12V / 20AH @ C10	12V / 40AH @ C10	12V / 75AH @ C10
Type of Battery	SMF	TUBULAR LEAD ACID
Depth of Discharge	75% of rated capacity
LIGHT SOURCE
Light Output Device	LED		CFL
Light Wattage	3W		9/11W
No. of Lights	1	2	1	2	2	4
DC Fan < 20W	0	0	0	0	1	0
Make / Brand of Lamp	NICHIA/OSRAM/PHILIPS/CREE		OSRAM
Daily Usage Capacity	3 to 4 Hrs per Day
Storage Autonomy	3 Days
General
Accessories	Mounting structure, Cables, Battery Enclosure, Optional DC fan
The electrical characteristics are within ± 5% of the indicated values of Isc, Voc and Pmpp under Standard Test Conditions
(STC: irradiance of 1000 W/m2, AM 1.5 spectrum, and a cell temperature of 25°C/77°F)
Sunmatrix India ¦ Technical modification subject to change without notice
